Power Quality Analyzer
Chauvin Arnoux Power Analyzer Series
Objectives: to record and quantify electrical consumption.
Monitoring of the energy consumed and the active, reactive, non-active, apparent and distorting power values.
- Harmonics, THD
- Flicker
- Unbalance
- Voltage swells and dips
- Transients
- Frequency
- Inrush current
- Power factor (Cos φ)
Chauvin Arnoux PEL105 Power and Energy Logger Series
- 5 voltage inputs & 4 current inputs
- All-terrain shockproof casing resistant to UV light and high temperatures
- Ideal for mounting on electricity poles
- Self-powered by its voltage inputs up to 1,000 V
- Continuous recording at 200 ms intervals
- Measurements in compliance with IEEE 1459

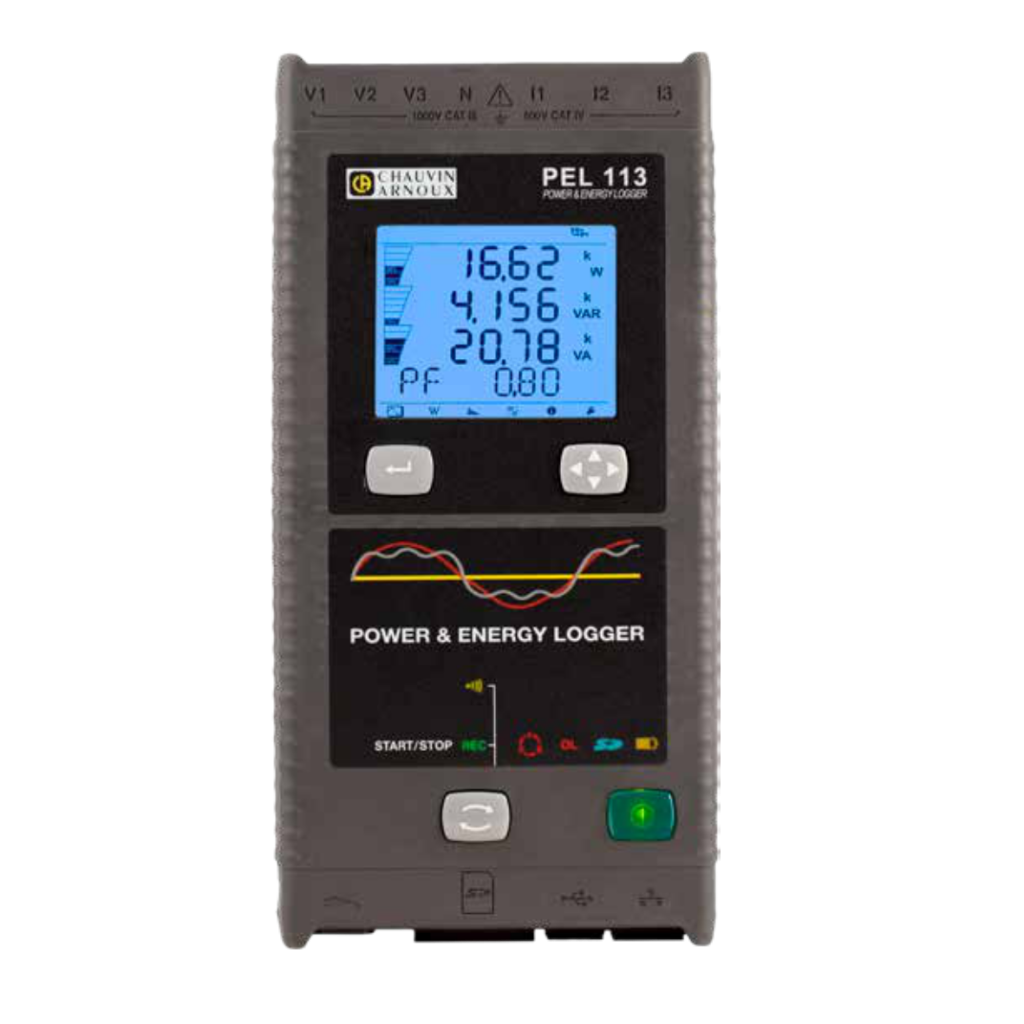

Chauvin Arnoux PEL113 Power and Energy Logger Series
Objective: to identify the causes of overconsumption by equipment or overbilling.
The energy logger measures the voltage, current, power and energy parameters useful for comprehensive surveys of electrical installations.
- Recording and metering of electrical consumption
- Possibility of installing in a network to provide several metering points
simultaneously - Simple, straightforward installation without cutting off the electricity supply
Chauvin Arnoux Thermal Camera
Objective: to optimize energy consumption for heating purposes.
- Range 20 – 250C
- Exceptional 13-hour battery life
- Quick startup in under 3 seconds
- An emissivity table which can be enhanced as required
- The possibility of renaming the images and thermograms by site
- Connection to current clamps and multimeters: all the necessary measurements simultaneously
Chauvin Arnoux F- Series Multimeter Clamp
Objective: active power measurement
- Simple measurement of voltages and currents on the installation (on electrical switchboards or directly on the equipment)
- Measurement of the THD which contributes to overloading of the electrical power sources
Chauvin Arnoux Solar Panel Tester
This highly-effective instrument can perform all the measurements needed to calculate the efficiency of the solar power installation:
- Electrical power survey
- Calculation of solar panel efficiency
- Calculation of inverter efficiency
Chauvin Arnoux Dataview (Software)
Software platform for processing and analysing the data.
Users have direct access to:
- real-time display alarm
- processing of the recorded data and report generation for energy surveys
Combustion Gas Analyzer
Combustion Gas Analyzer Kigaz 310
- Single connector
- Interchangeable probe
- 2 Go memory (100 000 measurements)
- Intuitive graphic interface
- LED on the probe handle to light dark areas
- Built-in printer
- Built-in water trap with max level alarm
- 3 pressure sensors
Combustion Gas Analyzer Kigaz 110
● Step by step procedure menu (gas flow, inspections)
● Self-test menu
● Built-in printer
Duct Leakage Tester
Positive & Negative Duct Accredition (PANDA) System
- Model PAN331 comes with standard Airflow TA465-P
- Multi-Function Instrument and PVM620 Micromanometer.
- Automatically calculates leakage rate in real time
- Simultaneous displays flow leakage rate and static pressure
- Provides a pass/fail indication for a given tightness class
- Automatically corrects actual volume flow leakage rate to Standard Temperature and Pressure (STP)
- Monitors barometric pressure and temperature in real time
- Stores data that can be downloaded for report generation and documentation
Ultrasonic Flow Meter
Portable Clamp-On Ultrasonic Flow Meter
Medium:
Water, Chemical/Petrochemical media, Pharmaceutical media, Others, Oil, Liquid food
Flow range:
from 3.18 to 5260284 l/min
Temperature:
from -40 to 121 °C
