- Pressure
- Temperature & Relative Humidity
- Air Velocity
- Multifunction
- IAQ
a) Pressure

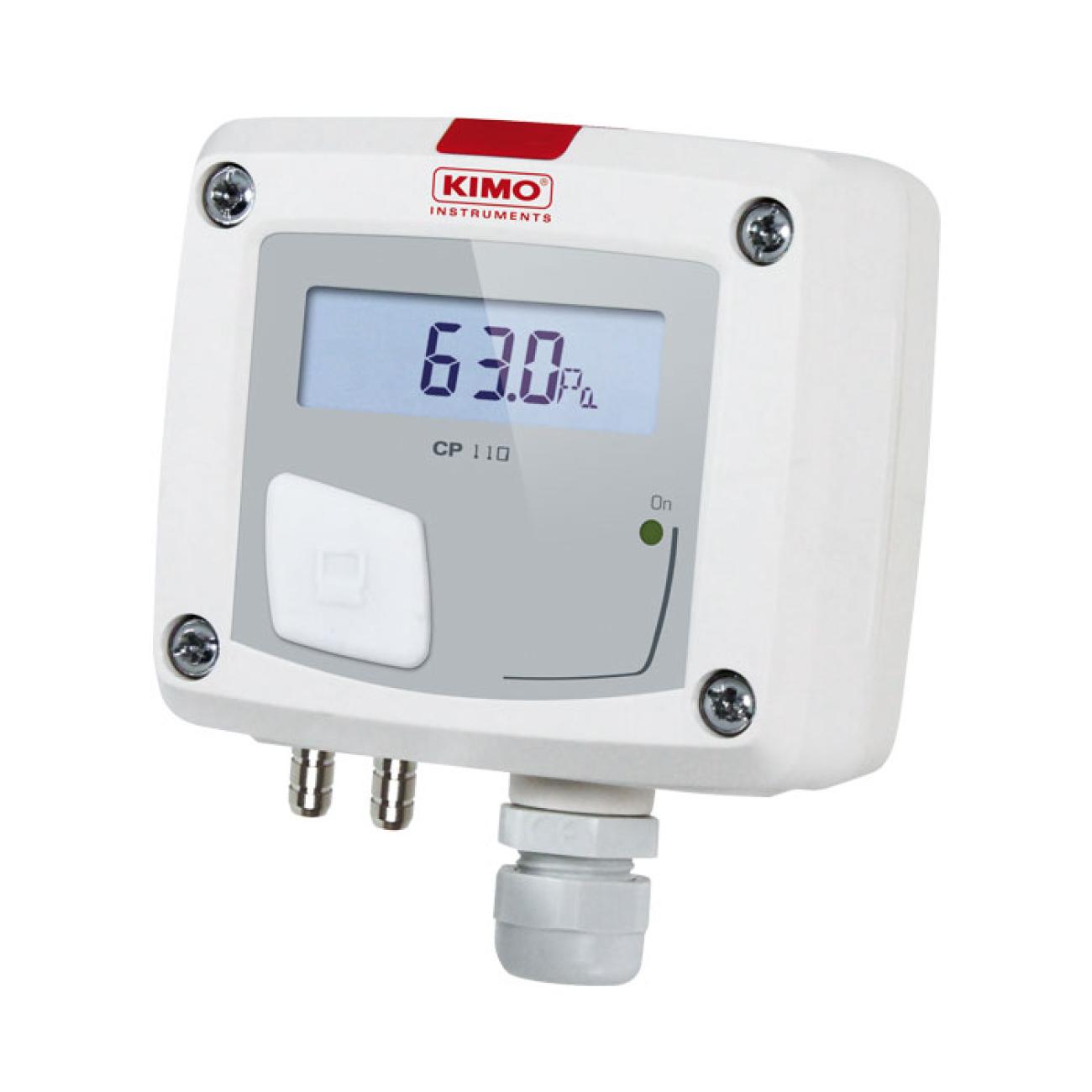

CP110 Differential Pressure Transmitter
- Configurable intermediary ranges and software or DIP switch configuration
- 0-10 V or 4-20 mA output
- With or without 10-digits LCD display
- “1⁄4 turn” system mounting with wall-mount plate
- Housing with simplified mounting system
- Solenoid valve for auto-calibration (only on CP111 model)
CP210-R Differential Temperature Sensor
- Measuring range: CP 211: -100 to +100 Pa, CP 212: -1,000 to +1,000 Pa, and CP 213: -10,000 to +10,000 Pa
- Solenoid valve for auto-calibration (CP211/212)
- 0-5/10 V or 0/4-20 mA outputs
- Two relays
- Automatic autozero
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
b) Temperature & Relative Humidity

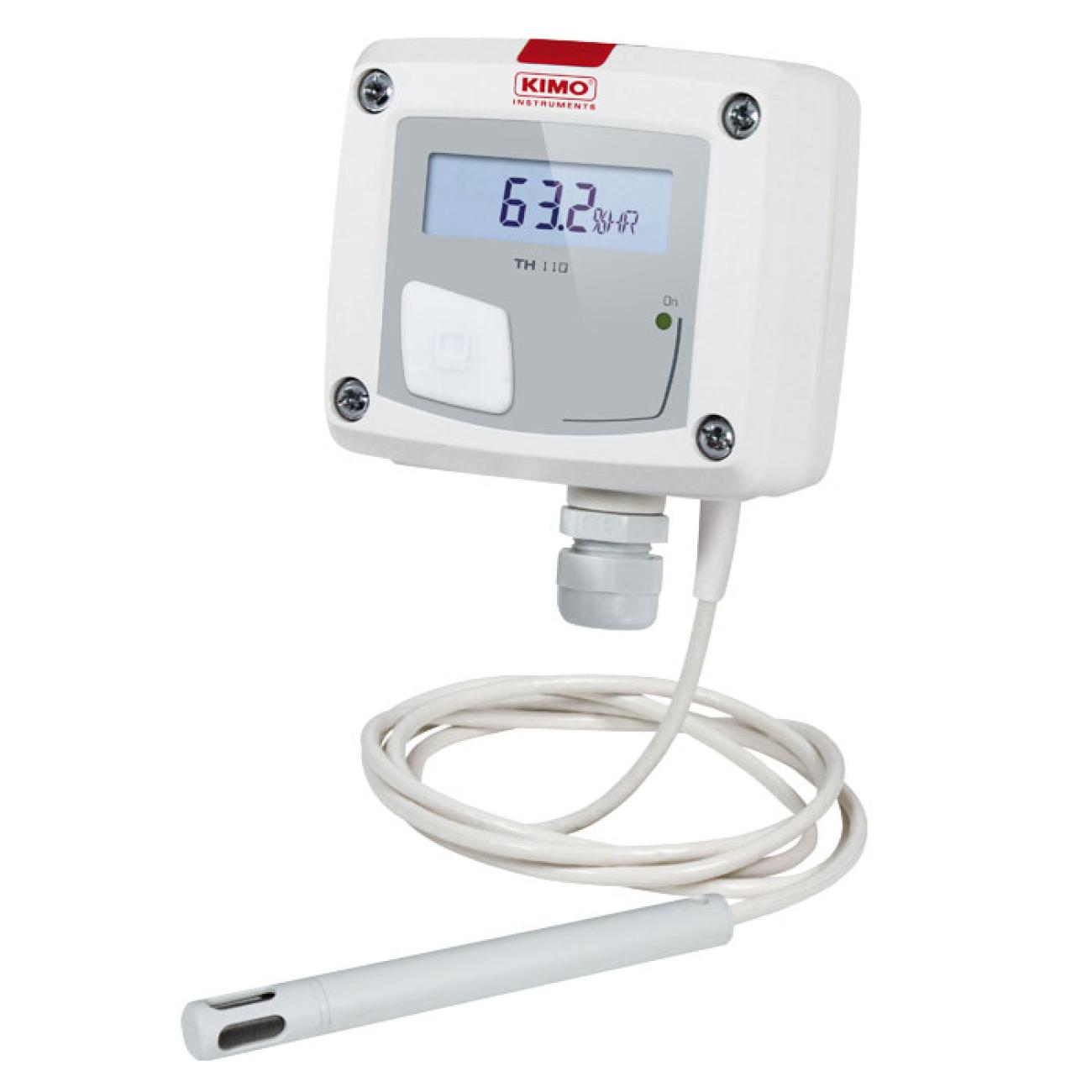

TH 110 Humidity and Temperature
- Measuring range from 5 to 95% RH and from 0 to 50°C (ambient model) or from -20 to +80°C (duct, remote or standard model)
- 0-10 V output or 4-20 mA output
- With or without 10-digits LCD display
- Housing with simplified mounting system
- Software or DIP switch configuration
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
TH 210-R Humidity and Temperature
- Stainless steel or polycarbonate probe
- With or without 2-line 19-digits LCD display
- 0-5/10 V or 0/4-20 mA outputs
- Trend indicator
- Two relays
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
c) Air Velocity

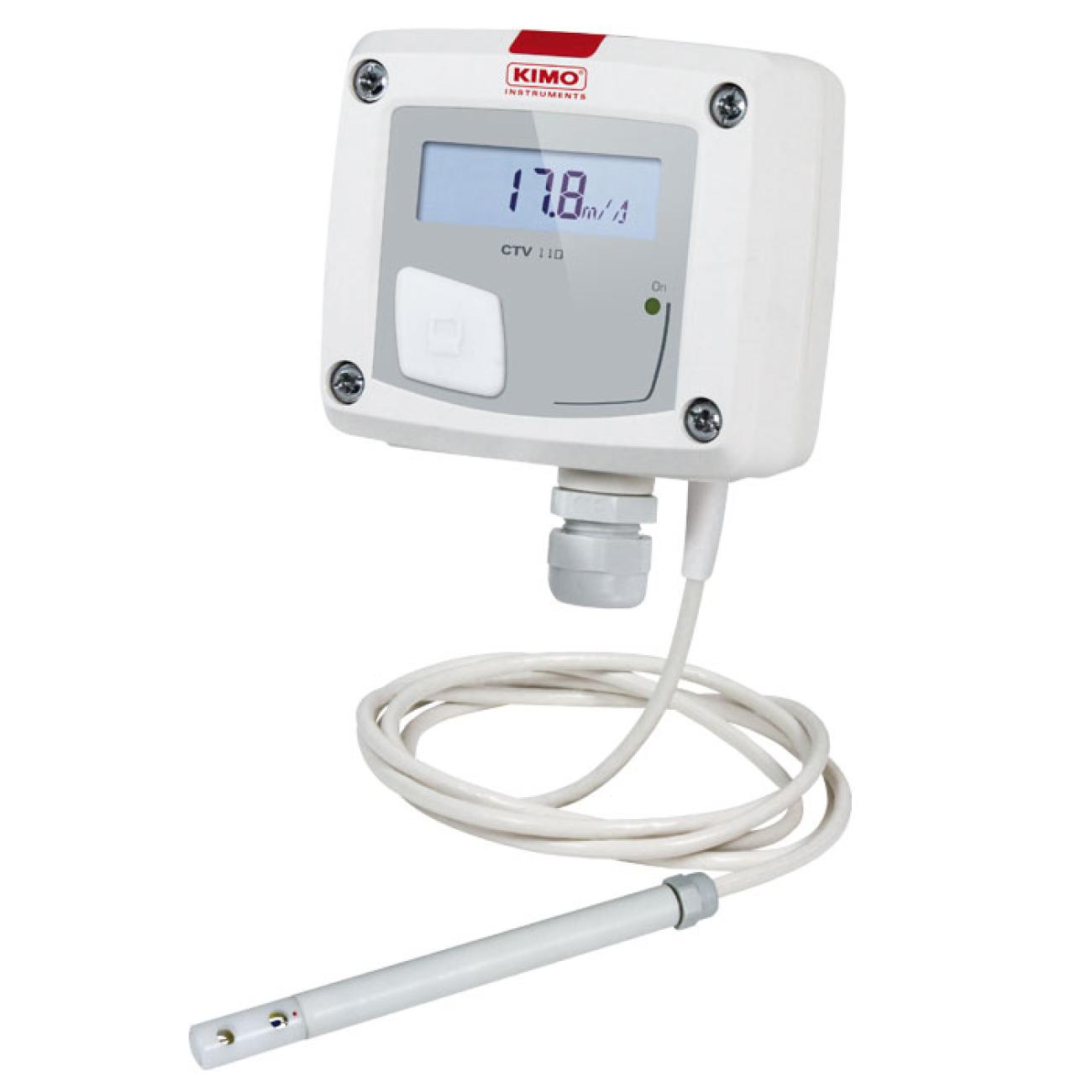

CTV110 Temperature and Air Velocity Transmitter
- Measuring range from 0 to 30 m/s and from 0 to 50°C
- Alternating display of air velocity and temperature
- 0-10 V or 4-20 mA output
- With or without 10-digits LCD display
- “1⁄4 turn” system mounting with wall-mount plate
- Housing with simplified mounting system

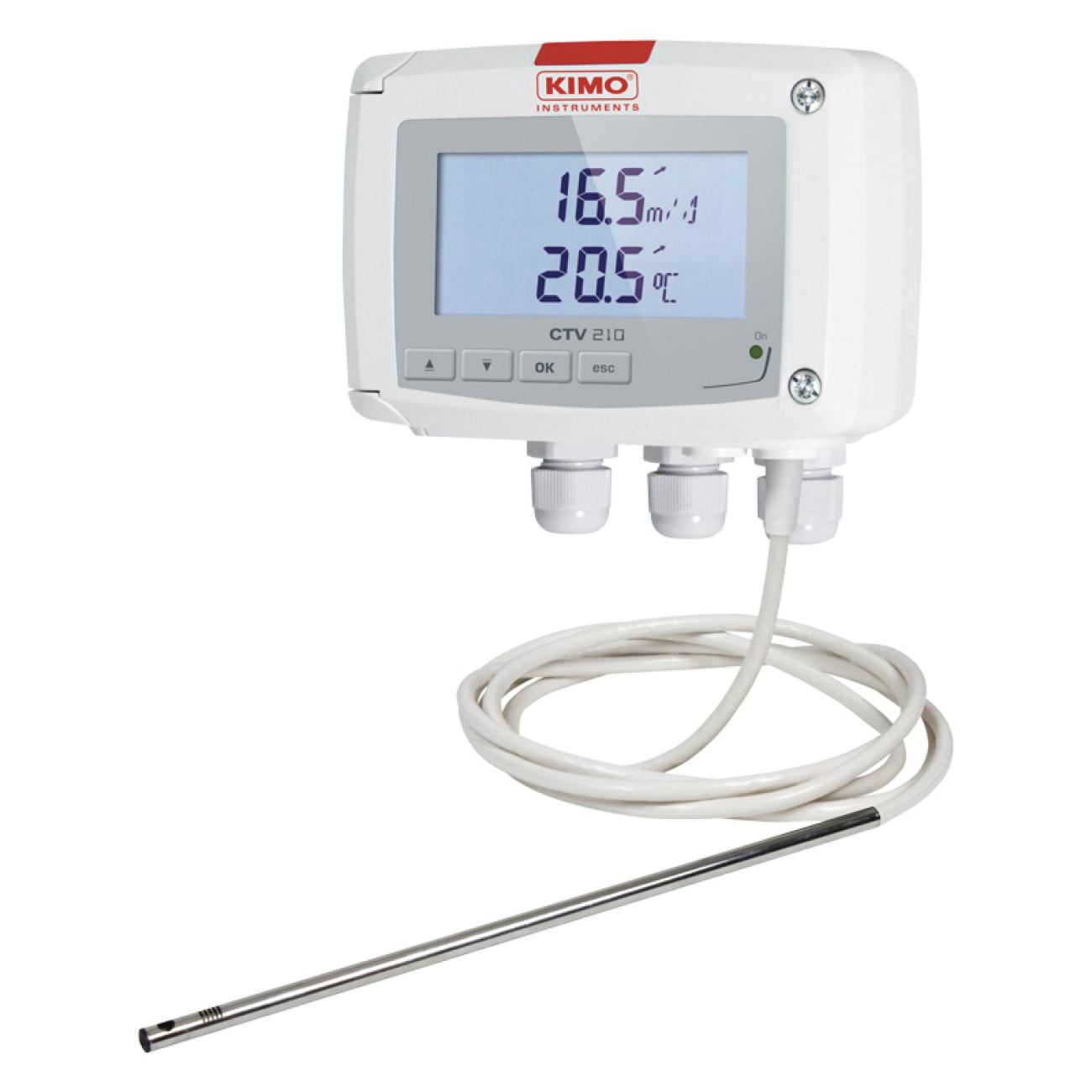

CTV210-R Air Velocity and Temperature Sensor
- Measuring ranges: air velocity: from 0 to 30 m/s
- Temperature: 0 to +50 °C
- With or without 2-line 19-digits LCD display
- Two relays
- 0-5/10 V or 0/4-20 mA outputs
- Adjustment certificate
d) Multifunction

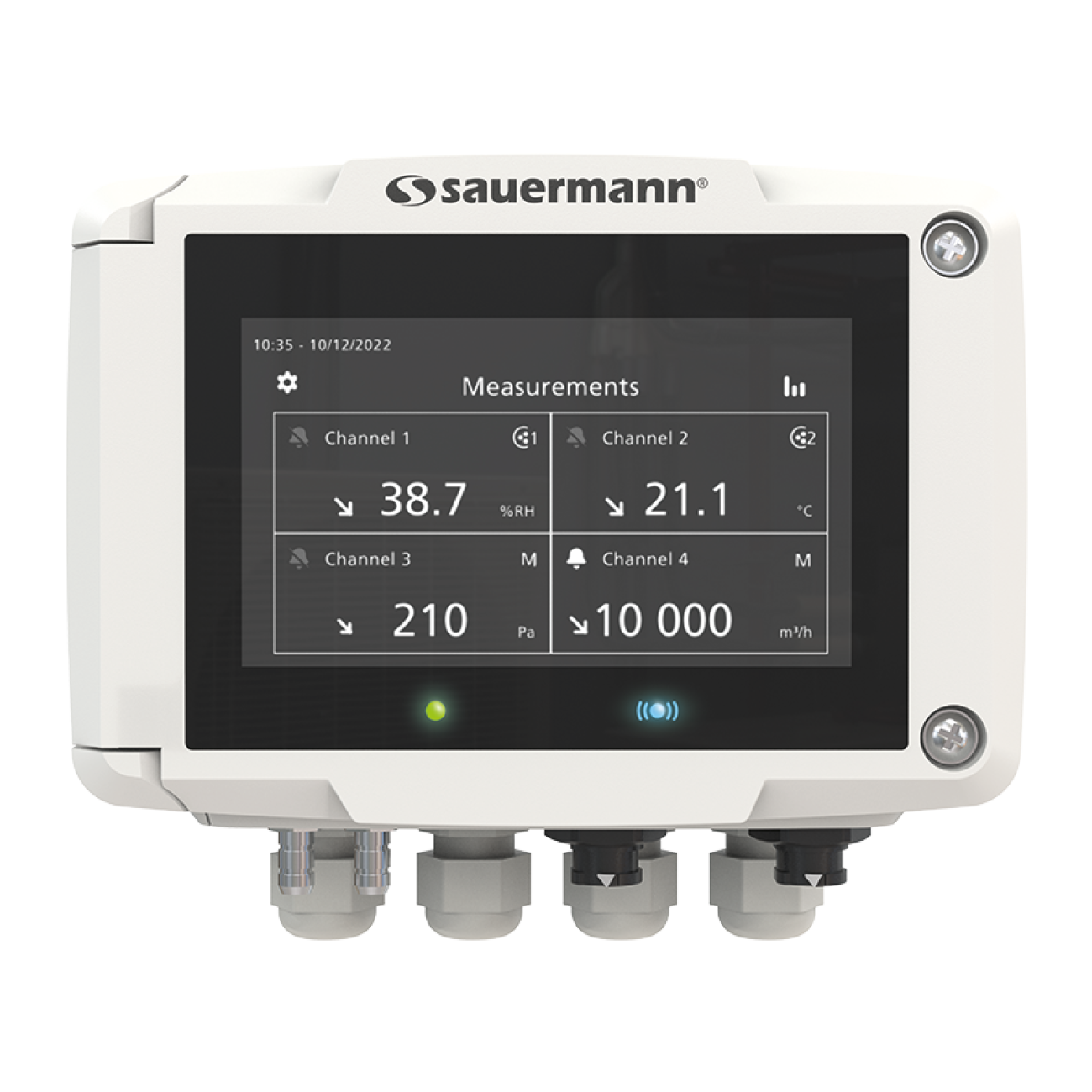

Si-C320 Multifunction Transmitter
- Multifunction for VAC and IAQ applications
- 2 x inputs for external probes
- 4 x analogue outputs
- 1 x RS485 interface for ModBus RTU protocol
- Outputs diagnostic
- Possibility to edit the channel names

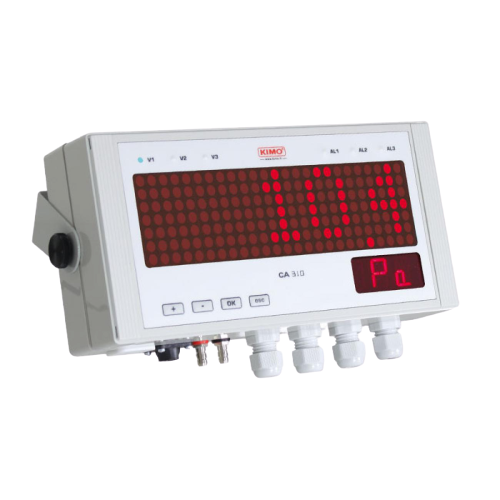

CA 310 Large display multifunction transmitter
- Alternating display of one to three parameters
- One input for an interchangeable probe
- Location for SPI-2 or MVA interchangeable board
- Three audible and visual (dual-color LEDs) alarms
- Three analogue outputs (4 wires) 0/5-10 V or 0/4-20 mA and three reverse relay
e) IAQ

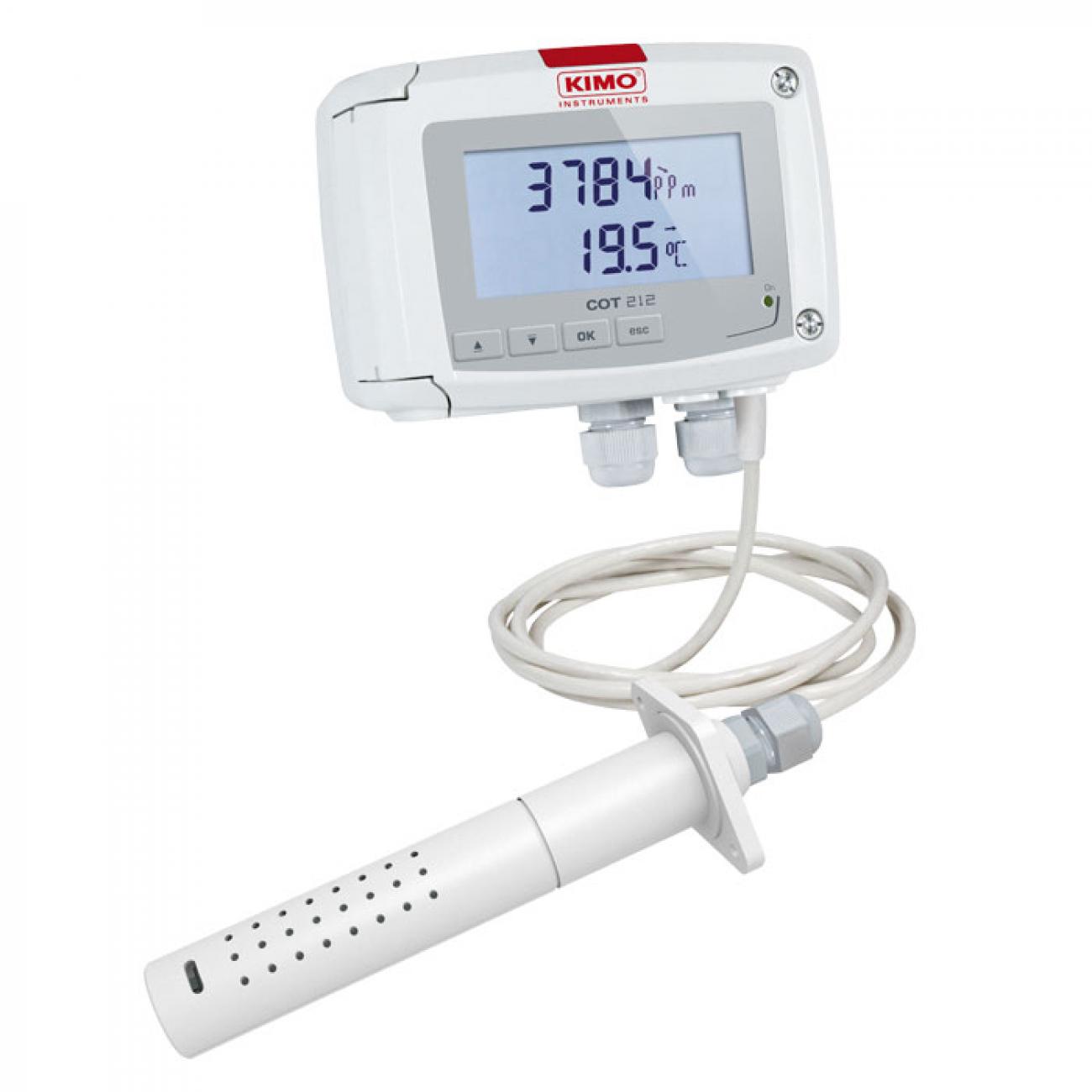

CO2 and temperature transmitter COT 212-R
- Measuring range measures CO2 from 0 to 20,000 ppm and temperature from 0 to 50°C
- With or without 2-line 19-digits LCD display
- Two relays
- 0-5/10 V or 0/4-20 mA outputs
- Quick and easy mounting with the 1/4 turn system with wall-mount plate

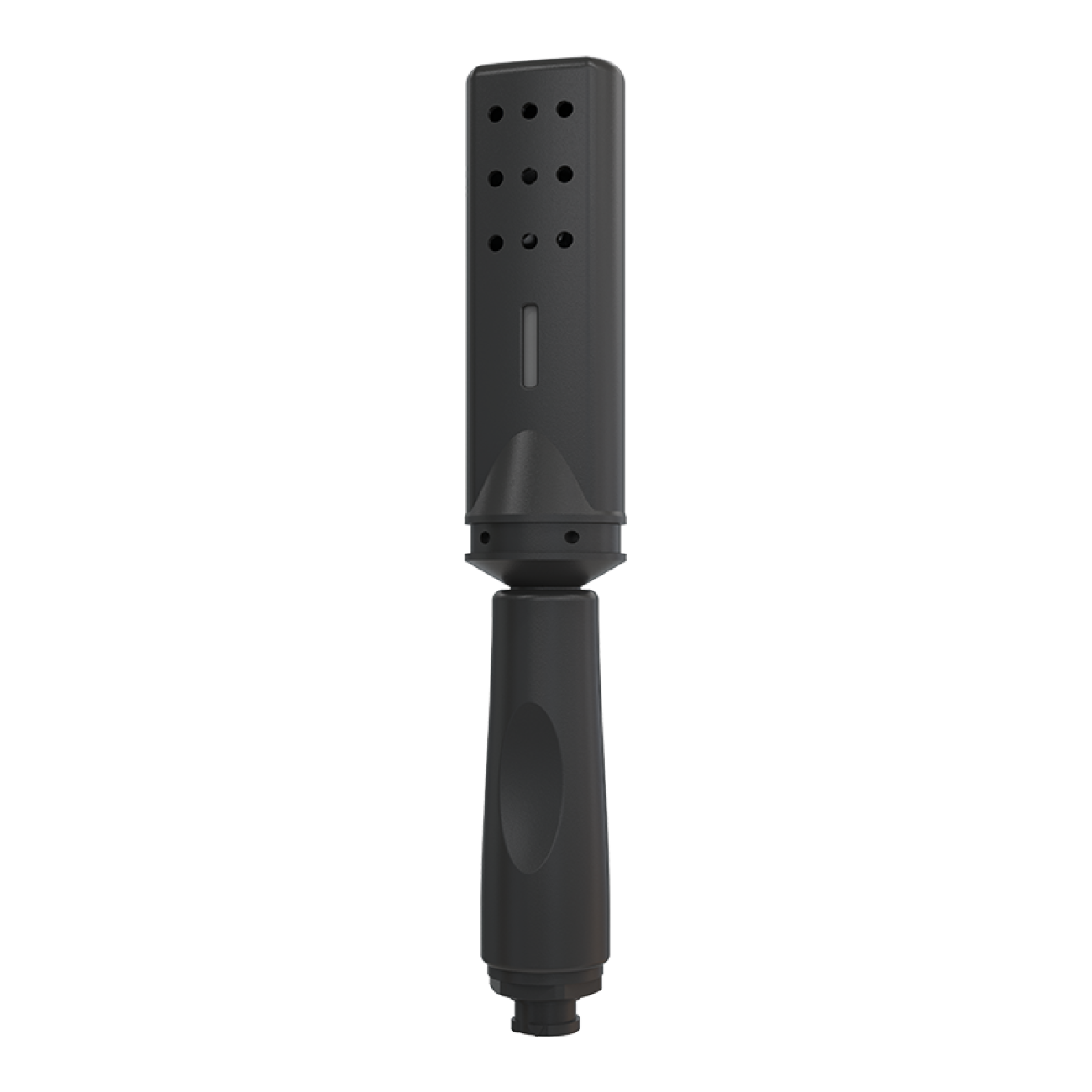

CO2 IAQ Probes for class 320 transmitters
- High accuracy
- Long-term stability
- Reliable measurements
- Interchangeable, autolock connector
