Moisture

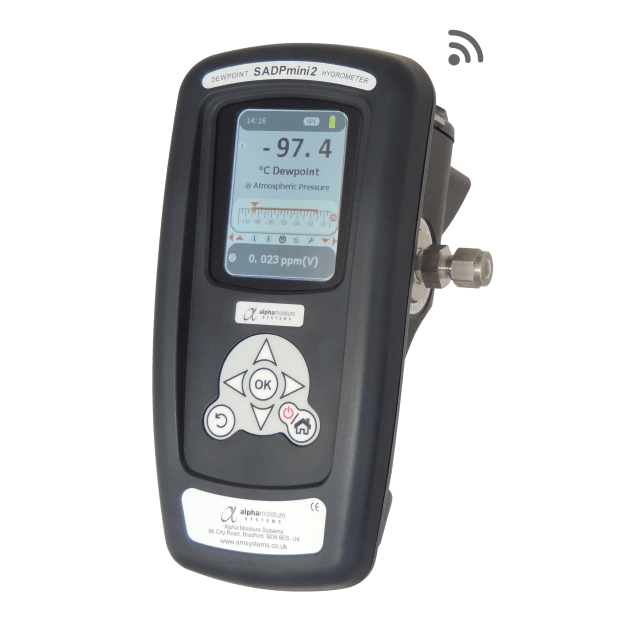

  • Dewpoint for Compress Gas (11°C to 110°C)
  • Dewpoint in HVAC
  • Moisture in Environment
  • Various Ranges: Overall Range -110ºC to +20ºC Dewpoint
  • Intrinsically Safe – ATEX Ex ia IIC T3/T4 Ga
  • Accuracy Guaranteed to ±2ºC Dewpoint
  • Selectable Engineering Units in ºC, ºF, ppb(v), ppm(v),ppm(w), g/m³ & lb/MMSCF
  • Desiccant Dry-Down Chamber for Rapid Measurements
  • Battery Life – 250 Hours of Continuous Operation
  • Self-Diagnostics on Start-up
  • Automatic Switch Off
  • Quick Connect SS Coupling
  • Portable – Fully Self Contained
  • User Friendly – Simple Operation
  • Intrinsically Safe – ATEX Ex ia IIC T3/T4 Ga
  • Various Ranges: Overall Range -110ºC to +20ºC Dew Point
  • Accuracy Guaranteed to ±2ºC Dew Point
  • Selectable Engineering Units in ºC, ºF, ppb(v), ppm(v),ppm(w), g/m³ & lb/MMSCF
  • Desiccant Dry-Down Chamber for Rapid Measurements
  • Battery Life – 250 Hours of Continuous Operation
  • Self-Diagnostics on Start-up
  • Automatic Switch Off
  • Quick Connect SS Coupling
  • Portable – Fully Self Contained
  • User Friendly – Simple Operation
  • Range available between -80°C to 0°C Td (-112°F to +32°F)
  • Guaranteed Accuracy ± 2°C Dewpoint
  • User Friendly – Simple Operation
  • Portable – Fully Self Contained
  • Digital Indication in °C or °F
  • Automatic Calibration
  • Sample Flow Indication
  • Quick Connect SS Fittings
  • Battery or Mains/AC Operated
  • Supplied with a Certificate of Calibration
  • Sample Flow Control for Inlet Pressure up to 20 barg
  • Desiccant Dry-Down Chamber For Rapid Measurements

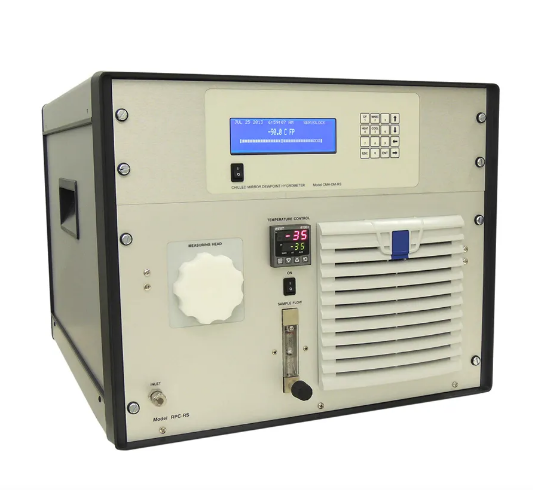

  • Quick set up, fast response, stable and reliable.
  • Accuracy to ± 0.2ºC dewpoint
  • Three Stage Peltier with additional refrigeration unit
  • Portable for Bench or Counter use
  • Front panel access to all main components including chilled mirror cleaning
  • Programmable Automatic Balance Cycle
  • Backlit LCD data display
  • Measurements in ºC or ºF dewpoint. %RH, AT, ppm(v) and pressure also available
  • Programmable dual alarms
  • Communication with terminal, printer, or computer
  • Universal power 110-230 VAC, 50/60Hz
  • Issued with a certificate of calibration to international standards
  • 2 years manufacturer’s warranty
  • Primary Measurement technique. Traceable to NPL/NIST.
  • Reduced maintenance requirements.
  • Easy to read, LED display
  • Rechargeable Batteries
  • Easily transportable in hard protective case
  • Wide measurement range (-75°C to +75°C)
  • Self balancing
  • Very user friendly with advanced functionality
  • DISPLAY in °C Dewpoint, %RH or g/m3
  • 22V – 253V AC or DC Operation
  • Accuracy better than ±2°C (±3.6°F) Td
  • 2 Independent, fully programmable alarm relays

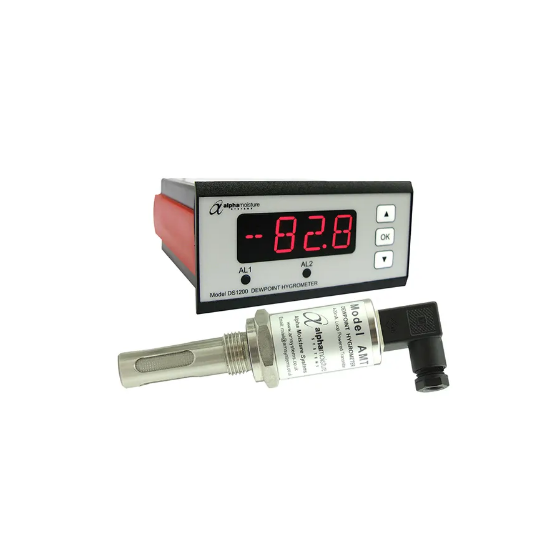

  • Cable Length >1km to transmitter
  • Ideally suited for higher dewpoints
    • Model AMT-Ex is ATEX certified and provides an Intrinsically Safe Dewpoint
    • Transmitter for hazardous area use when installed with the appropriate isolator. See AMT-Ex datasheet below.
    • 3 Wire Intrinsically Safe (I.S.) Dewpoint Transmitter

Certification – ATEX Marking:
– II 1GD Ex ia IIC T4 Ex iaD 20 T135°C (-20°C ≤ Ta ≤ +60°C)
Certification – IECEx Marking:
– BAS 07.0080 ia IIC T4 Ex iaD 20 T135°C (-20°C ≤ Ta ≤ +60°C)

  • Ranges available between: -120°C to +20°C (-184°F to +68°F) Dewpoint
  • Accuracy ± 2°C Dewpoint
  • AUTOMATIC CALIBRATION
    Can be configured for Linear 4-20mA signal Dewpoint, ppm(v), g/m3 and lb/MMSCF
    Temperature Compensation
  • Failure Diagnostics
  • Long Term Stability
  • Fast Response
  • IP66 / NEMA4X Protection
  • Wide dynamic range from 0.001 ppm to 0.2 per cent by volume
  • Stability, low hysteresis and temperature coefficients
  • Flow independent
  • Can be intrinsically safe (when used in conjunction with barrier or isolator)
  • High selectivity for moisture
  • Can operate over a wide range of temperature and pressure
  • Require little or no maintenance
