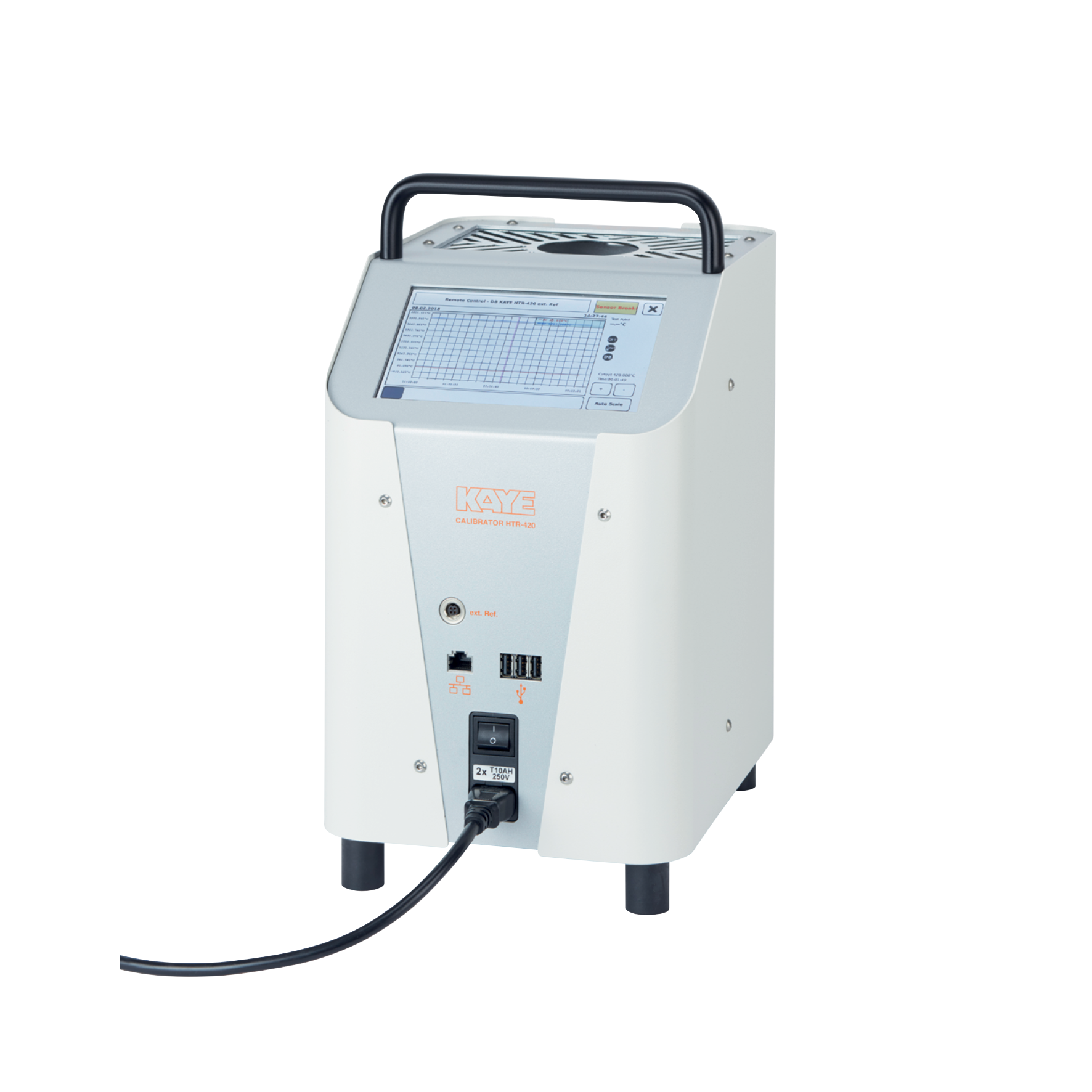

Temperature Bath

  • –95 ºC to 140 ºC Ultra-Cool Dry Block Calibrator
  • Stirling cooler technology: reaches –80 ºC in 60 min; –95 ºC in 80 minutes
  • Temperature stability of ±0.015 ºC
  • Actual Uniformity 0.05°C Full Range
  • Software interface with Kaye Validator for automatic sensor calibration utility
  • Custom block design to accommodate 2 reference probes (IRTD) and four inserts with three thermocouples per insert
  • Conformance to Euramet/cg-13
  • Ergonomics/industrial design with two carrying handles for portability
  • Rubber insulator cap to prevent frost build up
  • Weight: 16 kg (35 lbs.)
  • 120-minute cool-down time from 30 to -80°C
  • Large capacity for multiple and different size sensors
  • Stability and uniformity of ±0.03°C
  • Indicates temperature to 0.01°C resolution
  • Automates calibration when used with the Validator 2000
  • Quiet operation
  • RH Accuracy: ± 0.5%
  • RH Range: 5% to 95%
  • AT Accuracy: ± 0.2°C
  • AT Range: 10°C to 50°C
  • Temperature and RH controlled independently
  • Automatic correction for mirror contaminants
  • Certified measurements against NIST traceable standards
  • Standard features, where others charge extra

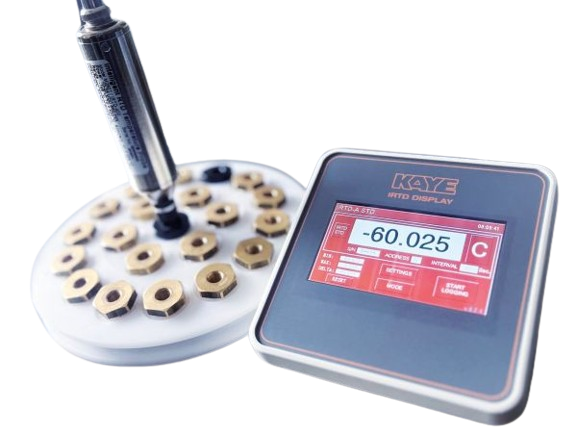

  • Temperature range -195 to 420°C
  • Accuracy over range ±0.025°C
  • Resolution 0.001°C
  • Sensor element 200 Ohm Platinum sensor
  • Sheath material InconelTM 600
  • Immersion depth 101.6mm (4″)
  • Calibration Traceable to NIST or PTB; Recommended calibration period is 1 year
  • Measurement rate 30 readings per second
  • Ambient temperature range 0 to 60°C (32 to 140°F)
  • Humidity Humidity 0 to 95% non-condensing
  • Dimensions Overall length: 603mm (23.75″); Grip: 89mm x 32mm (3.5″ x 1.25″)
  • Sensor sheath: 457mm x 6.35mm (18″ x 0.25″)

Humidity Calibrator

GH500
  • Calibration of several instruments simultaneously
  • solid transport case
  • Aluminium frame
  • Multi-probe ventilated measuring chamber
  • Portable instrument
  • Interchangeable regulating probe

Pressure Calibrator

GP500
  • Specific connectors
  • Larged backlighted display
  • Configuration software 20 programs with adjustable generations
  • Solid transport case
  • Aluminium housing with adjustable carrying handle

Particle Count Calibration

s2b
  • Provide repair and service such as regular on-site preventive machine
  • Carry substantial spare parts for particle counter services to ensure minimal downtime
  • Perform laser change without return products to oversea manufacturers
  • Product Support :
    • Airborne Particle Counter
    • Gas Particle Counter
    • Remote Air Particle Sensor
    • Particle Spectrometers
